More than ten years have passed since the Fukushima nuclear accident. That disaster, triggered by a tsunami, ultimately evolved into a nuclear leakage crisis. The key turning point was not a design defect of the reactor itself — but that seawater flooded into the diesel generator room. A door that failed to hold allowed the cooling system to completely lose power.
This detail has led the global nuclear power industry to re-examine a long-overlooked issue: a sufficiently high seawall does not mean that building openings are protected.
After Fukushima, China’s nuclear safety regulatory authorities successively issued rectification requirements. Nuclear power plants raised seawalls, elevated site platform levels, and rechecked the design basis flood level.
These measures are necessary. However, what they address is the issue of preventing floods from “entering the site.”
There is another more practical issue that has not been systematically resolved: when floodwater actually enters the plant area, through which openings will it enter safety-critical buildings?
Document No. [2012] 98 issued by the National Nuclear Safety Administration clearly states:
- Reassess the rationality of the design basis flood;
- Evaluate water accumulation paths and depths within the plant area;
- For safety-critical buildings such as the nuclear island, implement above-ground flood protection measures to prevent uncontrolled ingress of accumulated water.
These three requirements, translated into engineering language, point to the same weak link: building openings — doorways, passages, air inlets — are the last line of defense in the flood protection system, and also the most likely to fail.
II. Three “Questions” Faced by Traditional Flood Doors
For a long time, protection of building openings in nuclear power plants has relied more on engineering experience: on-site customization, self-designed solutions, and manufacturers’ claims of compliance.
However, when regulatory authorities or insurance companies raise the following three questions, it is often difficult to provide convincing answers:
❶ Will the door deform under the design water depth, leading to seal failure?
❷ If floodwater carries floating debris (such as logs and miscellaneous objects), can it withstand the impact?
❸ What is the leakage rate? Can the internal drainage system handle it?
These three questions cannot be answered by design drawings, nor by manufacturers’ statements. They require standardized third-party test data to provide answers.
III. FM Certification: Establishing a “Ruler” for Flood Doors
In the global field of industrial risk management, FM Global (FM) is recognized as one of the most stringent industrial loss prevention standard systems.
Its core documents in the flood protection field form a complete logic from macro strategy to product verification:
FM Data Sheet 1-40 “Flood” — Strategic Level
Not only focuses on flood protection elevation, but systematically organizes:
- Flood risk zoning and assessment methods
- Coordinated deployment of perimeter defenses and building openings
- Leakage management: recognizing that absolute zero leakage is difficult to maintain, and instead establishing a quantifiable leakage control logic
ANSI/FM 2510 — Product Certification Level

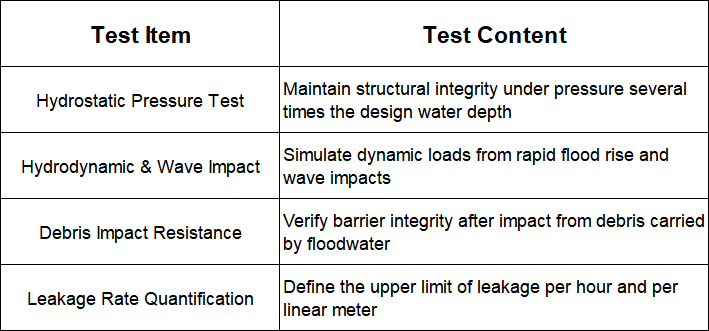

This is the “touchstone” for flood protection equipment. To obtain the FM Approved mark, flood doors must pass:
This set of tests transforms flood protection capability, originally “estimated based on experience,” into engineering data that can be reviewed, calculated, and incorporated into safety analysis.
IV. FM Standards × Chinese Nuclear Safety Regulations: Overlay, Not Replacement
A common question: nuclear power already has strict regulations — is FM standard still necessary?
The answer is clear: it is not a replacement, but an overlay.
The two systems have clear roles and perform their respective functions:
- Chinese nuclear safety regulations answer: how large a flood to resist, which safety-critical systems to protect, and how much safety margin to reserve;
- FM 1-40 + ANSI/FM 2510 answer: how to deploy protection, where to install doors, what level to select, and how to prove that it can “truly withstand.”
In actual projects, a clear implementation path can be formed:
Step 1 — Determine the design basis flood according to Chinese nuclear safety guidelines
Step 2 — Identify plant inundation paths and key openings based on FM 1-40
Step 3 — Install ANSI/FM 2510 certified flood doors at safety-critical openings
Step 4 — Use FM certification data to calculate drainage capacity and incorporate it into safety analysis and emergency procedures
Ultimately forming a flood protection system that: meets Chinese nuclear safety requirements + is supported by international engineering standards.
V. Which Locations Most Require FM-Certified Flood Doors?
Based on functional layout and flood ingress path analysis of nuclear power plants, the following key nodes have the highest priority:
Highest Priority (Common-Mode Failure Risk)
- External doors of nuclear island and safety-critical plant buildings: low-elevation entrances and waterside external doors — once breached, directly threaten nuclear island safety
- Emergency diesel generator (EDG) room entrances: the core lesson of Fukushima — flood protection for emergency power is the bottom line and cannot be compromised
High Priority (Flood Propagation Risk)
- Underground and semi-underground entrances: cable layers, pump rooms, tunnel entrances, ramps — water easily infiltrates along terrain
- Important internal partition doors: serve as a second barrier to limit flood spread, confining flood impact to specific areas

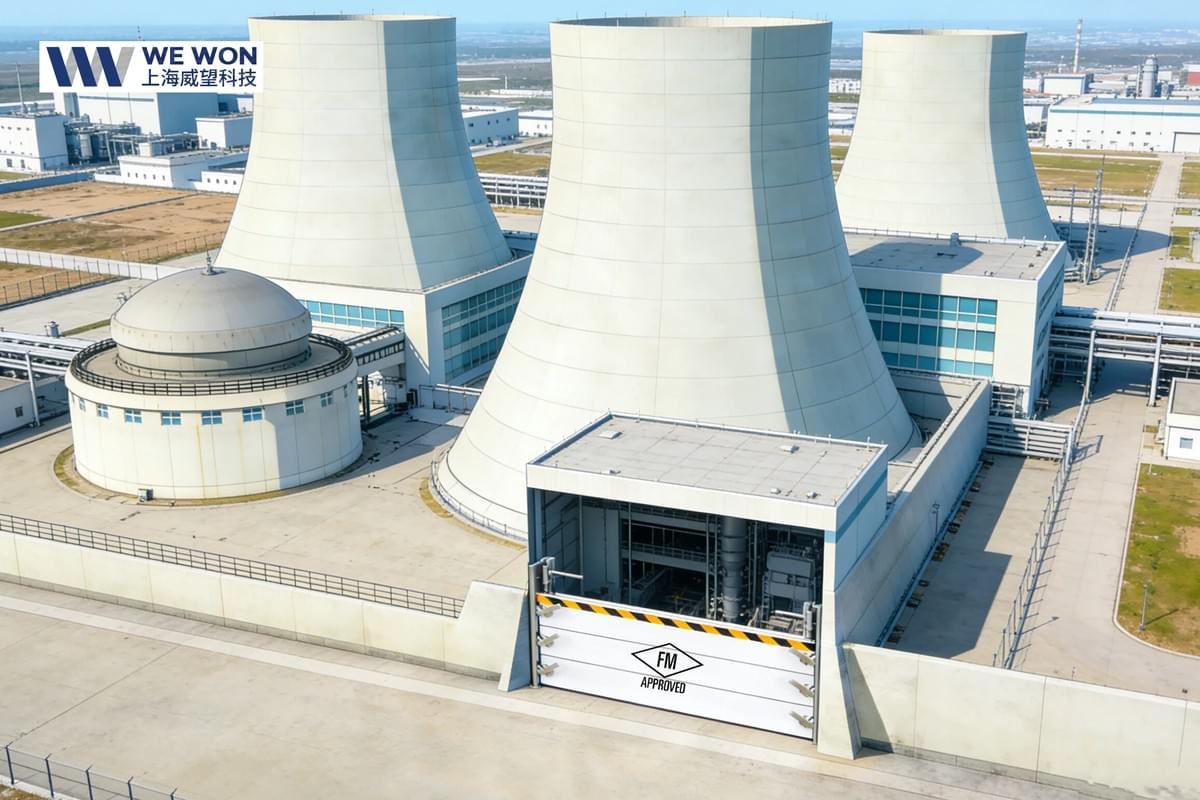

VI. WEIWANG FM-Certified Quick-Fit Buckled Flood Door
Shanghai Weiwang Technology Co., Ltd. focuses on the R&D of building disaster prevention products and compliance services. Our FM-certified quick-fit buckled flood door is a flood protection product solution specifically developed for high-risk industrial scenarios — including nuclear power plants.
✅ Core Product Features
| FM Approved, Performance with Evidence |
Full ANSI/FM 2510 certification, including complete test reports for hydrostatic pressure, hydrodynamic pressure, impact, and leakage rate, which can be directly submitted as evidence materials for nuclear safety review.
| Quick-Fit Buckled Structure, Reducing Human Error |
Tool-free, rapid deployment, reliable operation under extreme weather conditions, avoiding response risks caused by manual installation of traditional barriers.
| Quantified Leakage Rate, Supporting Integrated Design |
Provides clear leakage data in L/hr/m, which can be directly used for calculating sump capacity and drainage pump selection inside nuclear power plants, transforming flood risk into calculable engineering parameters.
| Complete QA Documentation System, Highly Compatible with Nuclear QA |
Traceable raw materials, complete process quality records, highly compatible with nuclear QA systems such as IAEA GS-R-3 and NQA-1, simplifying safety classification demonstration and site acceptance processes.
| Clear O&M Guidelines, Can Be Integrated into PM Programs |
FM standards specify periodic inspections and functional tests, preventing “installed but unused, failing when needed,” ensuring effective operation of flood protection facilities throughout the lifecycle.
VII. From “Compliance” to “Quantifiable, Verifiable, and Insurable”
Choosing FM-certified flood doors is not only about meeting regulatory requirements.

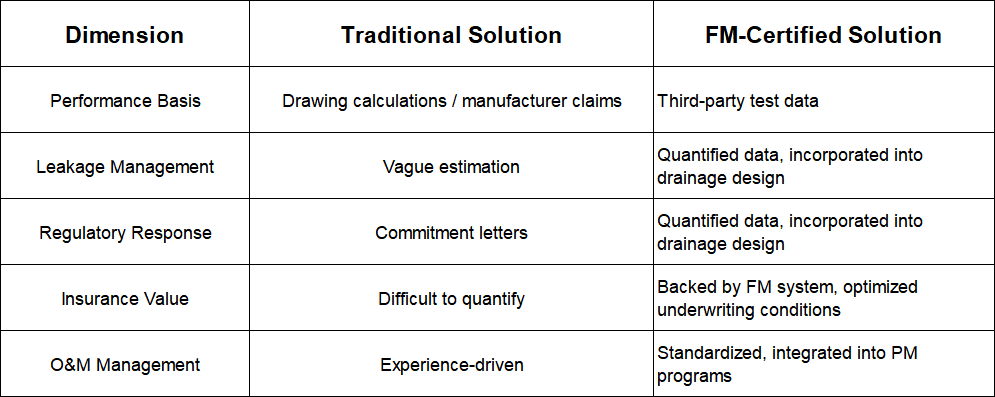

It represents a paradigm upgrade of flood protection capability for nuclear power plants:
When this “door” is no longer just a steel door, but an FM flood door that has undergone rigorous testing, carries international certification, and is embedded into the nuclear safety system — the flood protection capability of nuclear power plants truly moves from “compliance” to a new stage of quantifiable, verifiable, and insurable.
Conclusion
Seawalls and breakwaters are the first shield; flood doors and waterproof sealing are the final gate.
In today’s context of increasingly extreme climate conditions and large-scale nuclear power construction, whether this gate can hold should no longer rely on experience and luck — but on data, standards, and rigorously verified engineering equipment.
Shanghai Weiwang Technology provides a complete solution of FM-certified quick-fit buckled flood doors, covering risk assessment, product configuration, installation and maintenance, and O&M support, adding another reliable safeguard to the nuclear safety engineering defense line. Ensuring safety — with not a single drop leaking through.
