After the Fukushima accident, “water” has become one of the most sensitive external risk factors for nuclear power plants. While embankments have been raised and seawalls reinforced, the decisive factor in preventing floodwater from entering critical facilities often lies in overlooked openings such as doors, passages, and building penetrations.
Against this backdrop, flood doors have quietly evolved from ordinary components into critical elements of nuclear safety defense systems.
As a technical service provider specializing in disaster prevention and regulatory compliance, Shanghai Weiwang Technology has introduced FM-Approved Quick-fit Buckled Flood Doors, helping nuclear projects close the “last mile” of flood protection.
According to China’s nuclear safety regulations and industry standards, nuclear power plants must determine design-basis flood levels for scenarios including river flooding, storm surges, tsunamis, extreme rainfall, and dam failures, and ensure the reliable operation of safety-related systems under such conditions.
This means that beyond site elevation and flood embankments, a critical question must be addressed:
When floodwater enters the plant area, where will it penetrate safety-related buildings?
Document No. 98 (2012) issued by the National Nuclear Safety Administration clearly requires:
- Revalidation of the rationality of design-basis flood levels;
- Assessment of flooding pathways and depths within plant sites;
- Implementation of above-ground waterproofing measures for safety-related buildings to prevent uncontrolled water ingress.
In essence, these measures convey one principle:
Walls must withstand water pressure, and doors must hold the line.
II. Why FM-Approved Flood Doors Matter
Traditional flood doors are often designed and validated based on engineering experience, lacking unified performance standards and type testing. Under high water levels, long-duration flooding, and complex loading conditions, their actual resistance and leakage rates are difficult to quantify.
The FM system provides a mature, engineering-oriented solution:
- FM 1-40 “Flood”: Establishes a comprehensive flood protection framework covering site risk, protection elevation, and opening protection;
- ANSI/FM 2510: Certifies design water depth, leakage rate, and load-bearing capacity of flood doors through standardized testing.
For nuclear plant owners and designers, the core value lies in:
- Flood protection performance is no longer based on assumptions, but on verifiable test data;
- Product performance can be directly incorporated into safety analysis, drainage design, and emergency calculations.
Shanghai Weiwang’s FM-Approved Quick-fit Buckled Flood Doors are developed under this certification framework, featuring rapid deployment, robust structural performance, and FM-verified sealing capability, making them suitable for complex nuclear plant environments.
III. FM Standards and Chinese Nuclear Regulations: Integration, Not Replacement
A common question is whether FM standards are necessary when nuclear regulations are already stringent.
The answer is: they complement rather than replace each other.
- Chinese nuclear safety regulations define: flood design criteria, protected systems, and safety margins;
- FM 1-40 and ANSI/FM 2510 address: protection layout, door locations, performance grades, and verification methods.
In practice, a clear implementation pathway can be established:
1.Determine design-basis flood levels in accordance with Chinese nuclear guidelines;
2.Identify inundation zones and critical openings using FM 1-40;
3.Install ANSI/FM 2510-certified flood doors at key openings;
4.Apply FM test data in drainage calculations, safety analysis, and emergency procedures.
This results in a flood protection system that complies with Chinese nuclear requirements and is endorsed by international engineering standards.

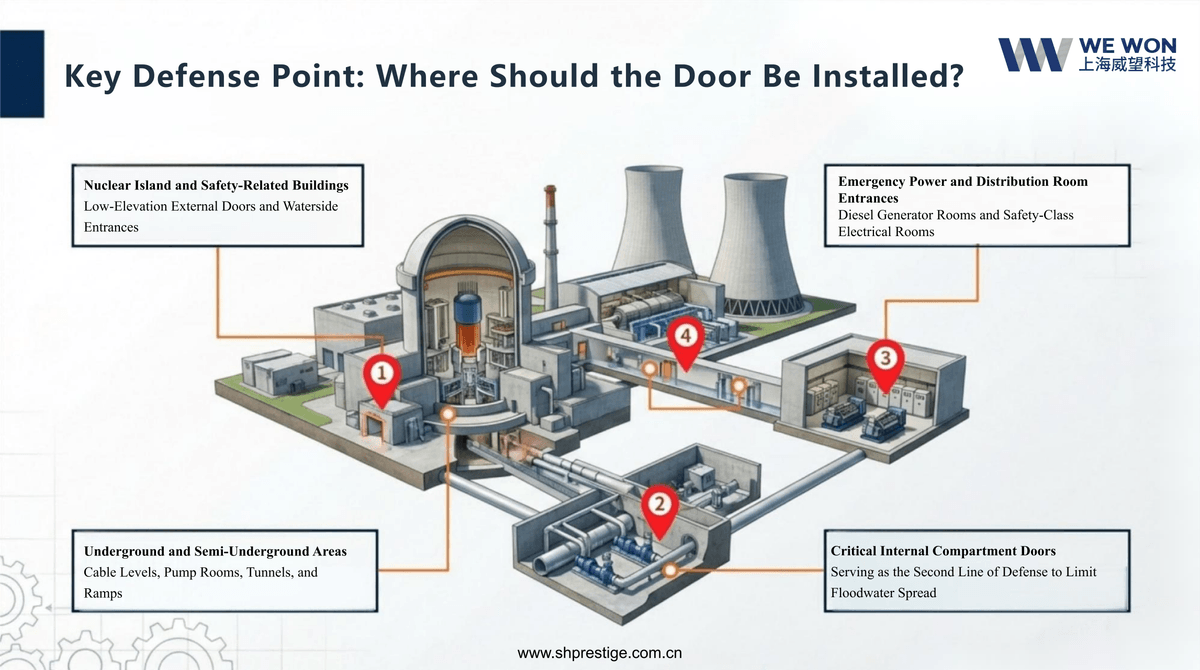

IV. Typical Application Locations in Nuclear Power Plants
In engineering practice, FM-Approved flood doors are particularly suitable for the following critical areas:
- External doors of nuclear islands and safety-related buildings, including low-elevation and waterfront entrances;
- Underground and semi-underground access points such as cable levels, pump rooms, tunnels, and ramps;
- Entrances to emergency power and distribution rooms, including diesel generator rooms and safety-class switchgear rooms;
- Internal compartment doors serving as secondary barriers against water propagation.
Failure at any of these locations may allow floodwater to directly threaten safety-class equipment.
Conclusion: Upgrading Flood Doors into Nuclear Safety Equipment
Within nuclear flood protection systems, embankments and seawalls form the first line of defense, while flood doors and firestopping systems serve as the final barrier.
When this barrier is no longer just “a door,” but an FM-certified, rigorously tested component integrated into the nuclear safety framework, flood protection evolves from mere compliance to a measurable, verifiable, and insurable capability.
Shanghai Weiwang provides comprehensive FM-Approved Quick-fit Buckled Flood Door solutions, covering risk assessment, product configuration, installation, and maintenance, adding a reliable engineering safeguard to nuclear safety.
